Understand Available Slots in Custom Modules

This guide follows on Create a Custom Portal Module, where you created a landing page module. You will learn how to add native sidebar dropdown element, action buttons and search, a split view window, and layout options using the built-in functions of Directus. These help provide a more coherent experience from other Directus modules and collections.

Available Slots

The private view in Directus has a number of slots available which are empty by default but you can add content using a template tag. For example:

<template #slot_name>
    // Content to insert into the slot
</template>

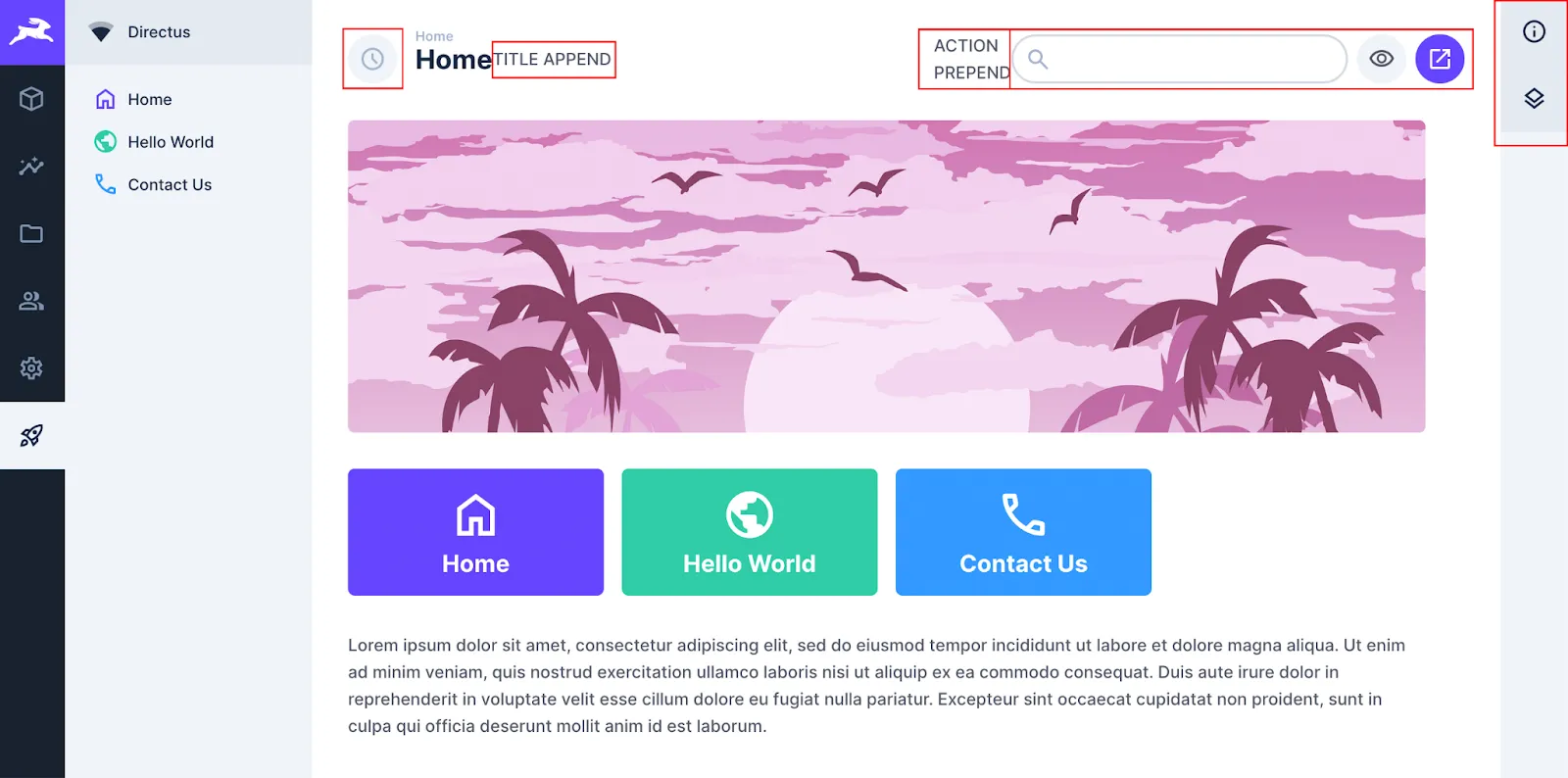

The slots available to you in this view are:

• headline
• title-outer:prepend
• title-outer:append
• actions
• actions:prepend
• sidebar
• splitView

headline

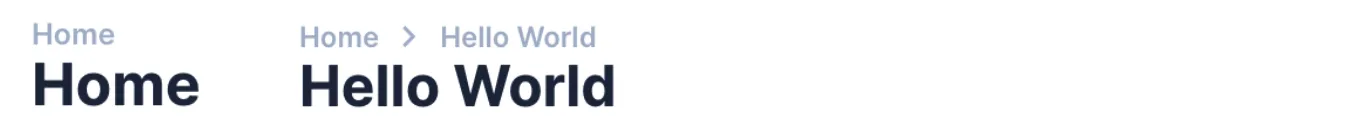

This is the area above the page title utilized for the breadcrumbs. Use the following code to include a breadcrumb.

<template v-if="breadcrumb" #headline>
    <v-breadcrumb :items="breadcrumb" />
</template>

v-breadcumb accepts a list of objects which will output the pages in order of the list:

[
    {
        name: 'Home',
        to: '/landing-page',
    },
]

title-outer:prepend

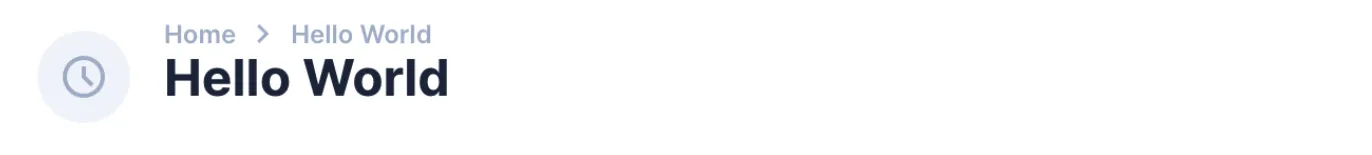

You can add content to the left of the title using the Title Outer Prepend slot, which Directus uses this slot for an icon inside a circle. The icon relates to the current page such as the collection icon or the cog icon for settings.

<template #title-outer:prepend>
    <v-button class="header-icon" rounded disabled icon secondary>
        <v-icon name="access_time" />
    </v-button>
</template>

title-outer:append

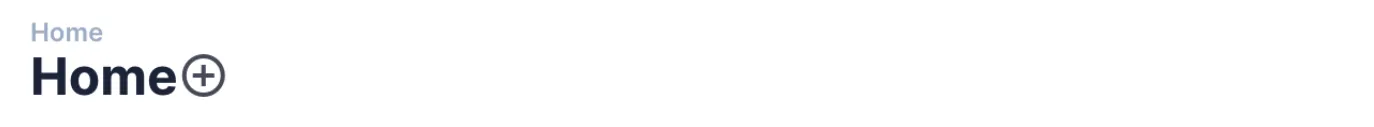

You can add content or clickable buttons to the right of the title which is normally used for version control and bookmarks. In this example, the slot is used for a clickable icon button.

<template #title-outer:append>
    <v-icon
        clickable
        name="add_circle"
        @click="buttonAction()"
    />
</template>

actions

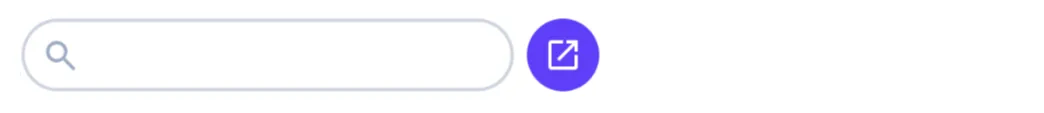

This slot is located in the header on the right-hand side. You can add content to this area such as clickable buttons and a search bar.

<template #actions>
    <v-input class="module-search" :model-value="search">
        <template #prepend><v-icon name="search" /></template>
    </v-input>
    <v-button v-tooltip.bottom="'COOL'" icon rounded>
        <v-icon name="launch" />
    </v-button>
</template>

You will also need to style the search. I suggest matching the existing one in Directus using this CSS:

.v-input.full-width.module-search {
    display: flex;
    width: 300px;
    height: 44px;

    .input {
        width: auto;
        padding: 0 10px;
        overflow: hidden;
        color: var(--theme--foreground);
        text-overflow: ellipsis;
        background-color: var(--theme--background);
        border-radius: 22px;
    }
}

actions:prepend

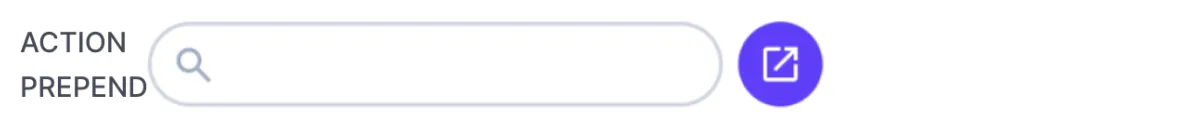

You can add content before the actions slot like page information and selection details but this requires your own CSS to ensure it outputs on a single line.

<template #actions:prepend>
    ACTION PREPEND
</template>

sidebar

By default, your sidebar is empty but still present. It’s worth making use of this real estate with various tasks or information that users have grown to expect in the right side menu.

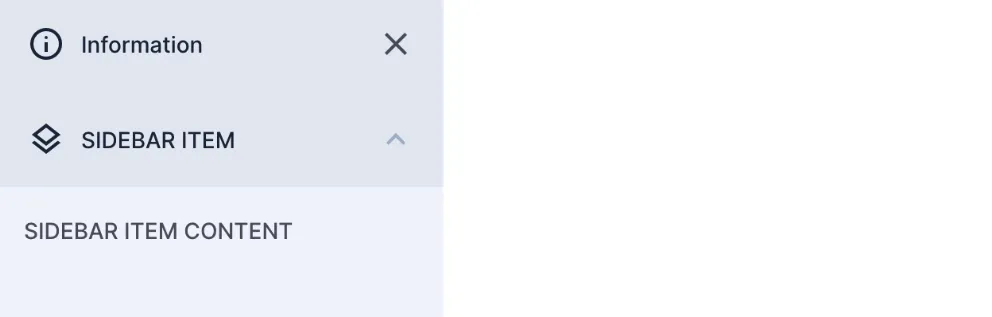

In the example below are two dropdown sections using the sidebar-detail component. The first section is the Information section that is used throughout Directus. You can create a page_description variable to output information related to the current page, then update this content within your setup whenever a new page is selected. The second section outputs some custom text.

<template #sidebar>
    <sidebar-detail icon="info" title="Information" close>
        <div v-md="page_description" class="page-description" />
    </sidebar-detail>
    <sidebar-detail icon="layers" title="SIDEBAR ITEM">
        SIDEBAR ITEM CONTENT
    </sidebar-detail>
</template>

splitView

You can add your own content to the split view slot which normally handles the Live Preview feature of Directus. It relies on the value "split" to be dynamically added to the private-view's v-model. This is normally controlled by an action button as shown below but can be triggered any way you choose. To use this feature, you need to add some attributes to the parent private-view and create a toggle button. The actions slot is a convenient place:

<private-view :splitView="livePreviewMode" :split-view-min-width="310" :title="page_title">
    <template #actions>
        <v-button
            v-tooltip.bottom="!livePreviewMode ? 'Enable Split View' : 'Disable Split View'"
            rounded
            icon
            class="action-preview"
            :secondary="!livePreviewMode"
            @click="toggleSplitView"
        >
            <v-icon name="visibility" outline />
        </v-button>
    </template>


    <template #splitView>
        <div ref="livePreviewEl" class="live-preview">
            <div class="container">
                <div class="iframe-view">
                    <div
                        ref="resizeHandle"
                        class="resize-handle"
                        :style="{
                            width: '100%',
                            height: '100%',
                            resize: 'both',
                        }"
                    >
                        <!-- <iframe id="frame" ref="frameEl" :src="url" @load="onIframeLoad" /> -->
                        SPLIT VIEW
                    </div>
                </div>
            </div>
        </div>
    </template>
</private-view>

In this example, livePreviewMode is toggled between true and false which can be achieved using the following code inside your setup:

const livePreviewMode = ref(false);

function toggleSplitView() {
    livePreviewMode.value = !livePreviewMode.value;
}

return { ..., toggleSplitView, livePreviewMode };

Add the following CSS to your style for the default styling of the SplitView container.

.live-preview {
    width: 100%;
    height: 100%;
    .container {
        width: 100%;
        height: calc(100% - 44px);
        overflow: auto;
    }
    .iframe-view {
        width: 100%;
        height: 100%;
        overflow: auto;
        display: grid;
        padding: 48px;
        #frame {
            width: 100%;
            height: 100%;
            border: 0;
        }
        .resize-handle {
            overflow: hidden;
            box-shadow: 0px 4px 12px -4px rgba(0, 0, 0, 0.2);
        }
    }
}

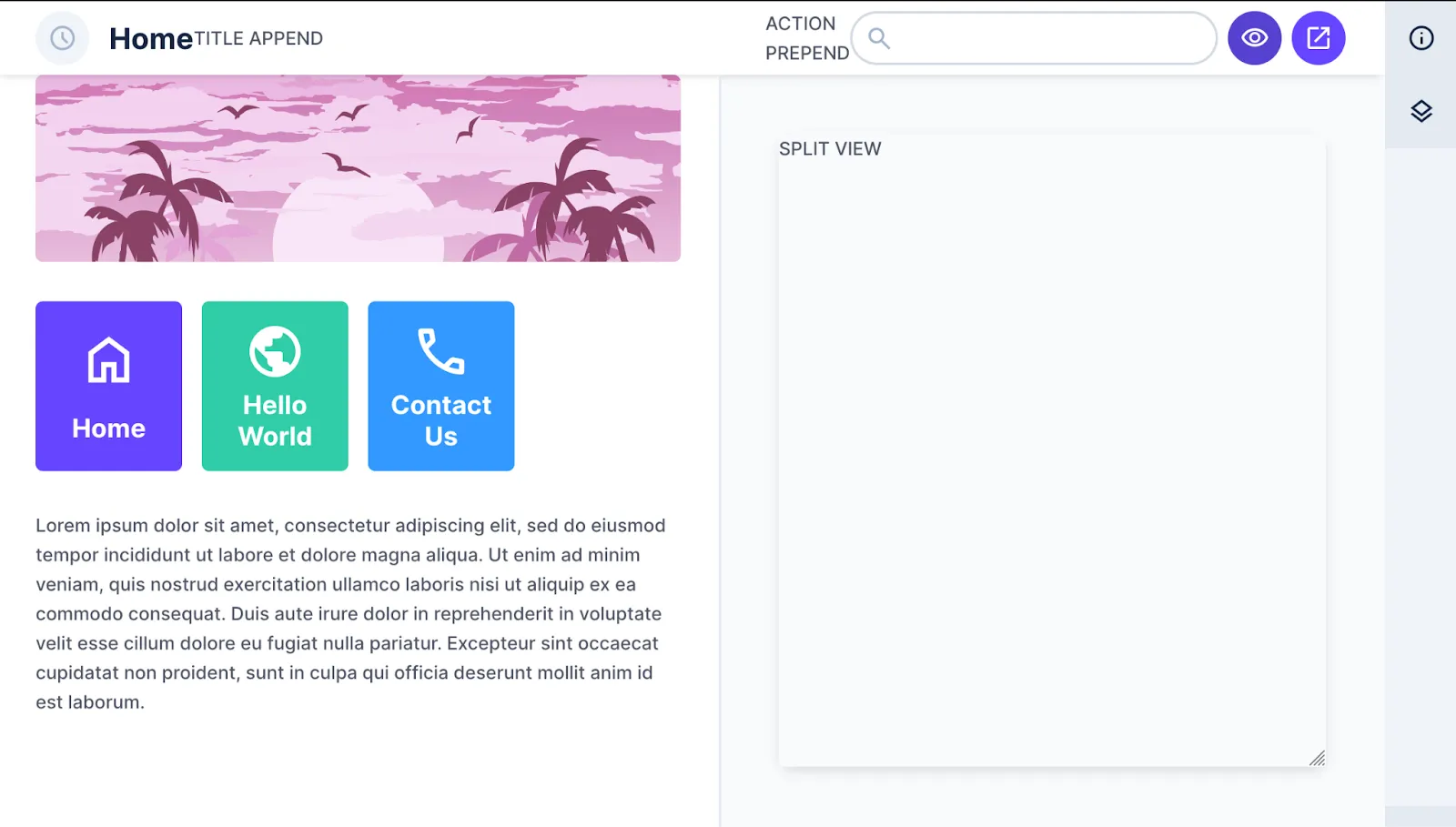

This outputs an eye button in the actions slot. When clicked, the SplitView container slides in from the right. Clicking the button again slides the container out to the right.

Permissions

Modules don’t have access control like collections do but you can use the permissions of a collection or the admin rights to limit access to content or the entire module.

To start using permissions, make sure to import useStores from the extensions SDK:

import { useApi, useStores } from '@directus/extensions-sdk';

// At the top of setup():
const { usePermissionsStore } = useStores();
const { hasPermission } = usePermissionsStore();
const permission = hasPermission('page', 'read');

// At the bottom of setup():
return { ..., permission };

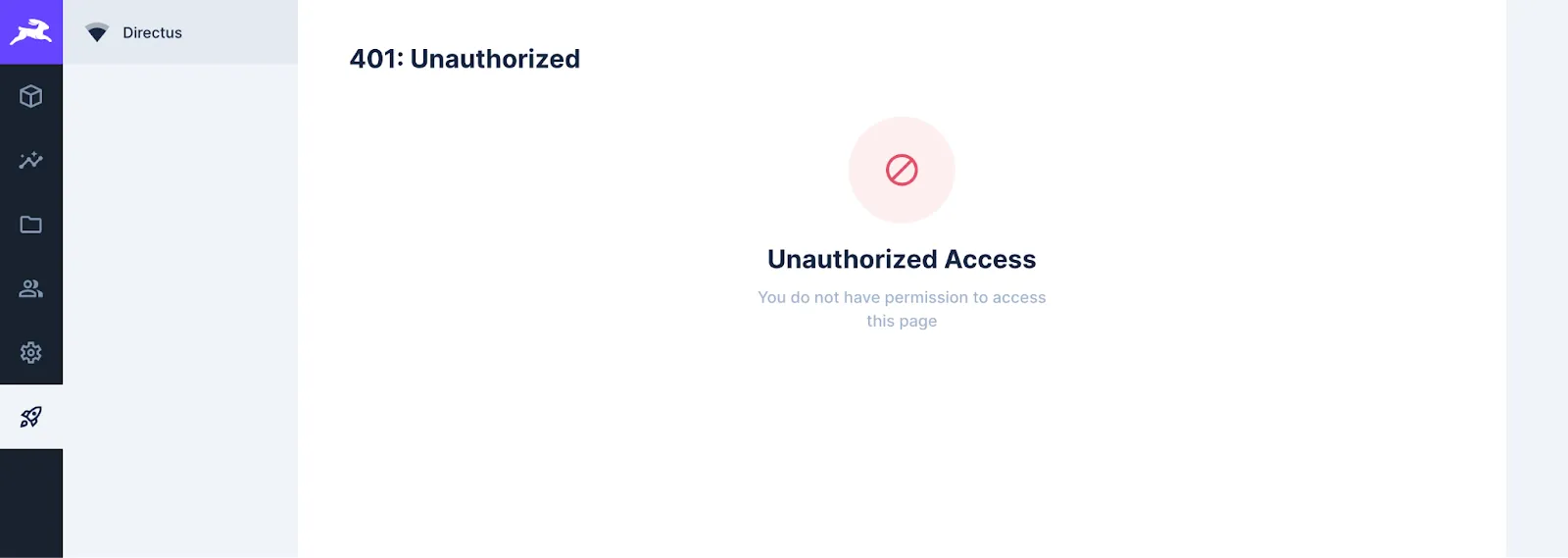

Is permission is true, the user has access. In the template, you can add a new view and the v-info component for when the permission constant is false:

<private-view v-if="!permission" title="401: Unauthorized">
    <v-info icon="block" title="Unauthorized Access" type="danger">
        You do not have permission to access this page
    </v-info>
</private-view>

<private-view v-else :title="page_title">
    // Existing Content
</private-view>

You can also create multiple variables that check permissions in different collections or access levels such as create, read, update, and delete. You could use those variables to hide or show various sections in your view using v-if. This works well when you use a collection to feed the content of your module.

Summary

With this guide, you have learned how to expand your module to utilize the various slots available in the private view and restrict your module using the permissions store. Utilizing the built-in components will provide a consistent experience for users when moving into your module and ultimately improve usability.
